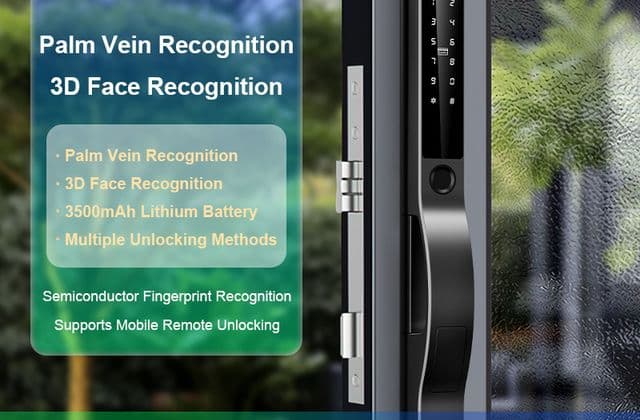

Bionic 3D face recognition with dual-camera sensing.
Product detail

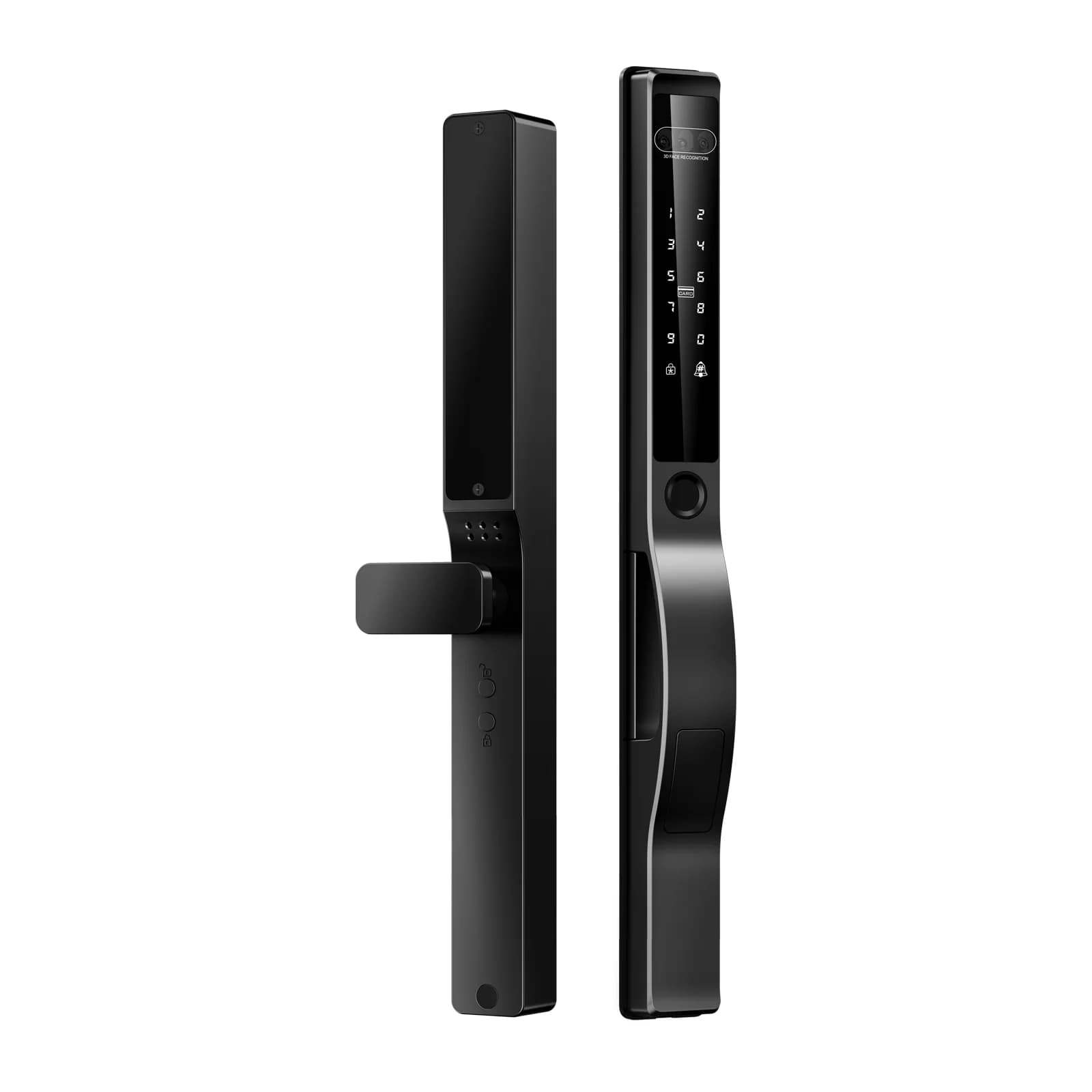

YN-DL-H005-T08 3D Face Recognition Smart Door Lock
YN-DL-H005-T08 is an aluminum-alloy 3D face-recognition smart door lock for 35–45 mm doors. It supports palm-vein recognition, fingerprint, password, MIFARE/NFC card and mechanical-key access, with optional 2.4 GHz Wi-Fi/Tuya App configuration and IP66-rated protection.
- Door fit
- 35–45 mm
- Protection
- IP66
- Cooperation
- OEM/ODM support
Buyer Review Summary
- Access
- 3D face recognition, palm-vein recognition, fingerprint, password, MIFARE/NFC card, and mechanical key.
- Communication
- Optional 2.4 GHz Wi-Fi with Tuya App; Bluetooth unsupported; no gateway required.
- Power
- 7.4 V, 3,500 mAh rechargeable lithium battery; 5 V Type-C emergency power.
- Construction
- Aluminum alloy
- 500 pcs
- Standard packaging MOQ
- 1,000 pcs
- OEM logo + color box
Product Detail
Features
Review the confirmed access methods, hardware direction, software options and buyer-facing value points for this model.
Standard palm-vein recognition.
Fingerprint, password, MIFARE/NFC card and mechanical-key access.
Optional 2.4 GHz Wi-Fi with Tuya App configuration.
IP66-rated protection.
7.4 V, 3,500 mAh rechargeable lithium battery.
5 V Type-C emergency power.
Fingerprint recognition speed: ≤ 300 ms.
Face recognition speed: 1.2–1.5 s.
Product Detail
Applications
Match the model to residential, hotel, apartment, rental, office or smart-home use cases before quotation.
Home entrance doors
Apartment entrance doors
Rental apartment upgrades
Private-label smart lock projects
thermal break aluminum
Smart Lock for Thermal Break Aluminum Door Frames
Narrow-frame Smart Lock for Aluminum Alloy Doors
Technical buyer information
Specifications
Key specifications are grouped for quick engineering, purchasing and quotation review.
Recognition & Access Performance
12
| Unlock Methods | 3D face recognition, palm-vein recognition, fingerprint, password, MIFARE/NFC card, and mechanical key. |
|---|---|
| Card technology | MIFARE / NFC |
| Fingerprint credentials | Up to 100 |
| Fingerprint recognition speed | ≤ 300 ms |
| False rejection rate (FRR) | ≤ 1% |
| False acceptance rate (FAR) | ≤ 0.001% |
| Face recognition speed | 1.2–1.5 s |
| Motor Unlock (Steady State) | 150 ~ 300 mA 0.2 ~ 0.5s |
| Classification by Unlocking Operation & Structure | Fully-automatic Smart Lock with Self-latching Mortise |
| Password + card credentials | 190 shared |
| Palm-vein recognition | Standard |
| Remote unlock | Unsupported |
Lock Body & Hardware
3
| Material / Finish | Aluminum alloy |
|---|---|
| Material | Aluminum alloy |
| Motor Starting Peak Current | 250~ 600 mA Momentary (< 50ms) |
Power & Battery Life
7
| Power Supply | 7.4 V, 3,500 mAh rechargeable lithium battery; 5 V Type-C emergency power. |
|---|---|
| Low-power alarm | <6.5V |
| Quiescent current | <55uA, excluding camera |
| Battery | 7.4 V, 3,500 mAh rechargeable lithium battery |
| Operating Current | 150-300mA |
| Standby Current | 45-60 uA |
| Emergency power | 5 V Type-C |
Communication & Software
4
| Communication | Optional 2.4 GHz Wi-Fi with Tuya App; Bluetooth unsupported; no gateway required. |
|---|---|
| Total system capacity | 300 users |
| Wi-Fi / Tuya App | Optional, 2.4 GHz |
| Bluetooth | Unsupported |
Environment & Protection
4
| Operating temperature | −30 to +60 °C |
|---|---|
| Storage temperature | −30 to +70 °C |
| Operating humidity | 20–93% RH, non-condensing |
| Ingress protection | IP66 |
Installation & Compatibility
3
| Dimension | 383.3*38.3*34.8mm; 404.4*42.4*40.5mm |
|---|---|
| Door thickness | 35–45 mm |
| Mortise Compatibility | 85xx-series mortise only |
Other Specifications
11
| ESD | Contact discharge 8kV, air discharge 15kV |
|---|---|
| Sensor Type | Semiconductor Capacitive Fingerprint Module |
| Resolution | 508 DPI |
| Administrators | Up to 10 |
| Regular users | 290 |
| Capacity description | Total system capacity: 300 users, including up to 10 administrators and 290 regular users. The system supports up to 100 fingerprint credentials and a shared capacity of 190 password and card credentials within the total system capacity. |
| Gateway | Not required |
| Complete-lock warranty | 2 years |
| Core-components warranty | 3 years |
| Lock-body size | 8525/8535/8545/8555/8560/8570 |
| Lock Operation | Fully automatic |
Product Detail
Downloads
Request datasheets, installation guides, operation manuals, video files and approved buyer resources for the selected model.
Product Detail
FAQ
Common buyer checks before model selection, sample review and OEM/ODM quotation.
Does YN-DL-H005-T08 support face recognition?
Yes. YN-DL-H005-T08 supports bionic 3D face recognition with dual cameras.
What door thickness does it support?
YN-DL-H005-T08 supports door thicknesses from 35 to 45 mm.
