Face recognition, fingerprint, password, card and mechanical-key access
Product detail
YN-DL-H008 Face and Palm Smart Door Lock
YN-DL-H008 smart door lock supports face recognition, fingerprint, password, card and mechanical-key access, with optional palm-vein recognition. Tuya Smart App and Smart Life App connectivity over 2.4 GHz Wi-Fi supports two-way communication, video intercom and remote unlock.
- Door fit
- 40–120 mm
- Cooperation
- OEM/ODM support
Buyer Review Summary
- Access
- Face recognition; fingerprint; password; card; mechanical key; optional palm-vein recognition
- Communication
- Tuya Smart App and Smart Life App over 2.4 GHz Wi-Fi; two-way communication; video intercom; remote unlock
- Power
- 7.4 V, 4200 mAh rechargeable lithium battery; charging input 5 V DC, 1 A or 2 A; Type-C emergency power input 5 V DC, 1 A or 2 A
- 500 pcs
- Standard packaging MOQ
- 1,000 pcs
- OEM logo + color box
Product Detail
Features
Review the confirmed access methods, hardware direction, software options and buyer-facing value points for this model.
Optional palm-vein recognition
Tuya Smart App and Smart Life App over 2.4 GHz Wi-Fi
Two-way communication, video intercom and remote unlock
60° radar detection with an effective distance of up to 1 m
7.4 V, 4200 mAh rechargeable lithium battery with Type-C emergency power
Product Detail
Applications
Match the model to residential, hotel, apartment, rental, office or smart-home use cases before quotation.

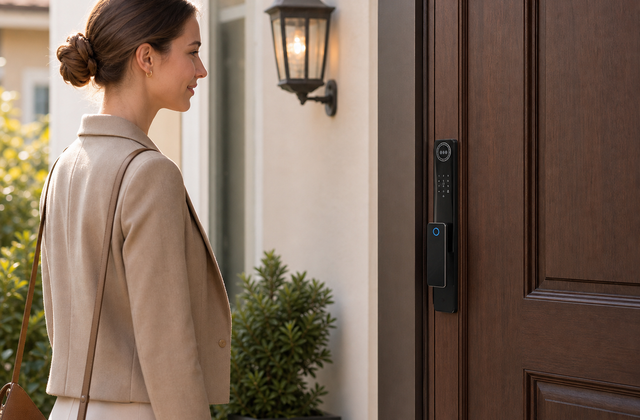

Residential entrance doors
Apartment entrance doors
Managed rental-property entrance doors
Application images
Technical buyer information
Specifications
Key specifications are grouped for quick engineering, purchasing and quotation review.
Recognition & Access Performance
5
| Unlock Methods | Face recognition; fingerprint; password; card; mechanical key; optional palm-vein recognition |
|---|---|
| Standard Unlock Methods | Face recognition; fingerprint; password; card; mechanical key |
| Optional Unlock Method | Palm-vein recognition |
| Card Technology | MIFARE Classic S50 (1K) / S70 (4K) |
| Card Reading Distance | 1–8 mm |
Lock Body & Hardware
1
| Mortise | 6068 mortise |
|---|
Power & Battery Life
6
| Power Supply | 7.4 V, 4200 mAh rechargeable lithium battery; charging input 5 V DC, 1 A or 2 A; Type-C emergency power input 5 V DC, 1 A or 2 A |
|---|---|
| Battery Voltage | 7.4 V |
| Battery Capacity | 4200 mAh |
| Battery Type | Rechargeable lithium battery |
| Emergency Power Interface | Type-C |
| Emergency Power Input | 5 V DC, 1 A or 2 A |
Communication & Software
2
| Communication | Tuya Smart App and Smart Life App over 2.4 GHz Wi-Fi; two-way communication; video intercom; remote unlock |
|---|---|
| Total System Capacity | 300 users |
Radar & Detection Performance
2
| Radar Detecting Angle | 60° |
|---|---|
| Radar Effective Distance | Up to 1 m |
Installation & Compatibility
2
| Exterior Panel Dimensions | 420 × 75 mm |
|---|---|
| Supported Door Thickness | 40–120 mm |
Certifications & Compliance
1
| Certification Support | YOUNUO can assist customers with local certification applications based on destination-market and project requirements. Final certification approval remains subject to the applicable local authority. |
|---|
Other Specifications
9
| Model | YN-DL-H008 |
|---|---|
| Apps | Tuya Smart App; Smart Life App |
| Network | 2.4 GHz Wi-Fi |
| Camera Functions | Two-way communication; video intercom; remote unlock |
| Charging Input | 5 V DC, 1 A or 2 A |
| Credential Capacity Limits | Total system capacity: 300 users. The system supports up to 10 administrators, 100 fingerprints, a shared capacity of 50 face and palm-vein credentials, and a shared capacity of 200 password and card credentials. These credential limits operate within the total system capacity and must not be added together as separate user totals. |
| Complete Lock Warranty | 2 years |
| Core Components Warranty | 3 years |
| MOQ | Standard MOQ: 500 pcs; OEM MOQ: 1,000 pcs; ODM MOQ: 3,000 pcs |
Product Detail
Downloads
Request datasheets, installation guides, operation manuals, video files and approved buyer resources for the selected model.
Product Detail
FAQ
Common buyer checks before model selection, sample review and OEM/ODM quotation.
Which unlock methods does YN-DL-H008 support?
YN-DL-H008 supports face recognition, fingerprint, password, card and mechanical-key access as standard. Palm-vein recognition is optional.
Which apps and connected camera functions are supported?
It supports Tuya Smart App and Smart Life App over 2.4 GHz Wi-Fi, with two-way communication, video intercom and remote unlock.
Which mortise and door thickness are supported?
It uses a 6068 mortise and supports doors 40–120 mm thick.
What are the exterior panel dimensions of YN-DL-H008?
The exterior panel dimensions are 420 × 75 mm.
What is the radar detection specification?
The radar detecting angle is 60°, with an effective distance of up to 1 m.
What battery, charging and emergency-power specifications apply?
It uses a 7.4 V, 4200 mAh rechargeable lithium battery. Charging input is 5 V DC, 1 A or 2 A. Type-C emergency power accepts 5 V DC, 1 A or 2 A.
What credential capacity does the system support?
Total system capacity: 300 users. The system supports up to 10 administrators, 100 fingerprints, a shared capacity of 50 face and palm-vein credentials, and a shared capacity of 200 password and card credentials. These credential limits operate within the total system capacity and must not be added together as separate user totals.
Which card technology and reading distance are supported?
It supports MIFARE Classic S50 (1K) and S70 (4K) cards, with a card reading distance of 1–8 mm.
What are the warranty, MOQ and certification-support terms?
The complete lock warranty is 2 years and the core-components warranty is 3 years. Standard MOQ: 500 pcs; OEM MOQ: 1,000 pcs; ODM MOQ: 3,000 pcs. YOUNUO can assist customers with local certification applications based on destination-market and project requirements. Final certification approval remains subject to the applicable local authority.
