YN-DL-H007-H Wi-Fi Smart Door Lock
Zinc-alloy Wi-Fi smart door lock with radar-based approach detection, NFC/Mifare card access and a slim panel for residential and apartment entrance doors.
- Door fit
- 40–120 mm
- Cooperation
- OEM/ODM support
Buyer Review Summary
- Access
- Mifare/NFC card and touch keypad; complete method bundle requires Owner confirmation
- Communication
- 2.4 GHz Wi-Fi
- Power
- DC 7.4 V; 5 V Type-C USB emergency supply
- Construction
- Zinc alloy
- 500 pcs
- Standard packaging MOQ
- 1,000 pcs
- OEM logo + color box
Product Detail
Features
Review the confirmed access methods, hardware direction, software options and buyer-facing value points for this model.
Radar approach detection from 0.8 to 2.0 m
Mifare/NFC card support and touch keypad
0.96-inch OLED front display
Type-C emergency power input
Product Detail
Applications
Match the model to residential, hotel, apartment, rental, office or smart-home use cases before quotation.
Residential entrance doors

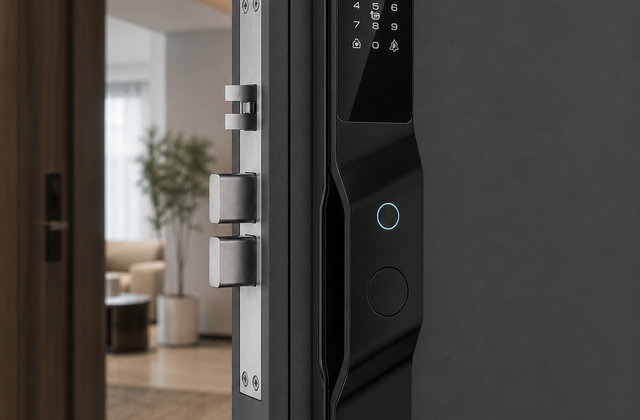

Apartment entrance doors
Rental-property entrance doors
Application images
Technical buyer information
Specifications
Key specifications are grouped for quick engineering, purchasing and quotation review.
Recognition & Access Performance
4
| Unlock Methods | Mifare/NFC card and touch keypad; complete method bundle requires Owner confirmation |
|---|---|
| Card Type | Mifare/NFC |
| User Capacity | 5 administrators + 295 regular users |
| Card Reading Distance | 0–40 mm |
Lock Body & Hardware
2
| Material / Finish | Zinc alloy |
|---|---|
| Material | Zinc alloy |
Power & Battery Life
5
| Power Supply | DC 7.4 V; 5 V Type-C USB emergency supply |
|---|---|
| Power | DC 7.4 V |
| Low-Power Alarm | <6.9 V |
| Emergency Supply | 5 V Type-C USB |
| Quiescent Current | <110 μA, excluding camera |
Communication & Software
1
| Communication | 2.4 GHz Wi-Fi |
|---|
Environment & Protection
2
| Operating Temperature | -20°C to 60°C |
|---|---|
| Storage Temperature | -30°C to 70°C |
Installation & Compatibility
2
| Panel Dimensions | 423 × 70 mm |
|---|---|
| Applicable Door Thickness | 40–120 mm |
Other Specifications
5
| Datasheet Model | YN-DL-H007-H |
|---|---|
| Human Detection | Radar, 0.8–2.0 m |
| Network | 2.4 GHz Wi-Fi |
| Front Display | 0.96-inch OLED |
| ESD | 8 kV contact discharge; 15 kV air discharge |
Product Detail
Downloads
Request datasheets, installation guides, operation manuals, video files and approved buyer resources for the selected model.
Product Detail
FAQ
Common buyer checks before model selection, sample review and OEM/ODM quotation.
Which network does YN-DL-H007 support?
The datasheet specifies 2.4 GHz Wi-Fi. It does not state support for 5 GHz Wi-Fi.
What card types are supported by YN-DL-H007?
The datasheet lists Mifare/NFC cards with a stated reading distance of 0–40 mm.
What door thickness is supported?
YN-DL-H007 is specified for doors 40–120 mm thick, subject to mortise and installation verification.
Can YN-DL-H007 be customized?
OEM/ODM scope, branding, packaging, firmware and finish options require project-specific confirmation.
