Compact smart door lock for glass, aluminium, wooden, and sliding doors
Product detail

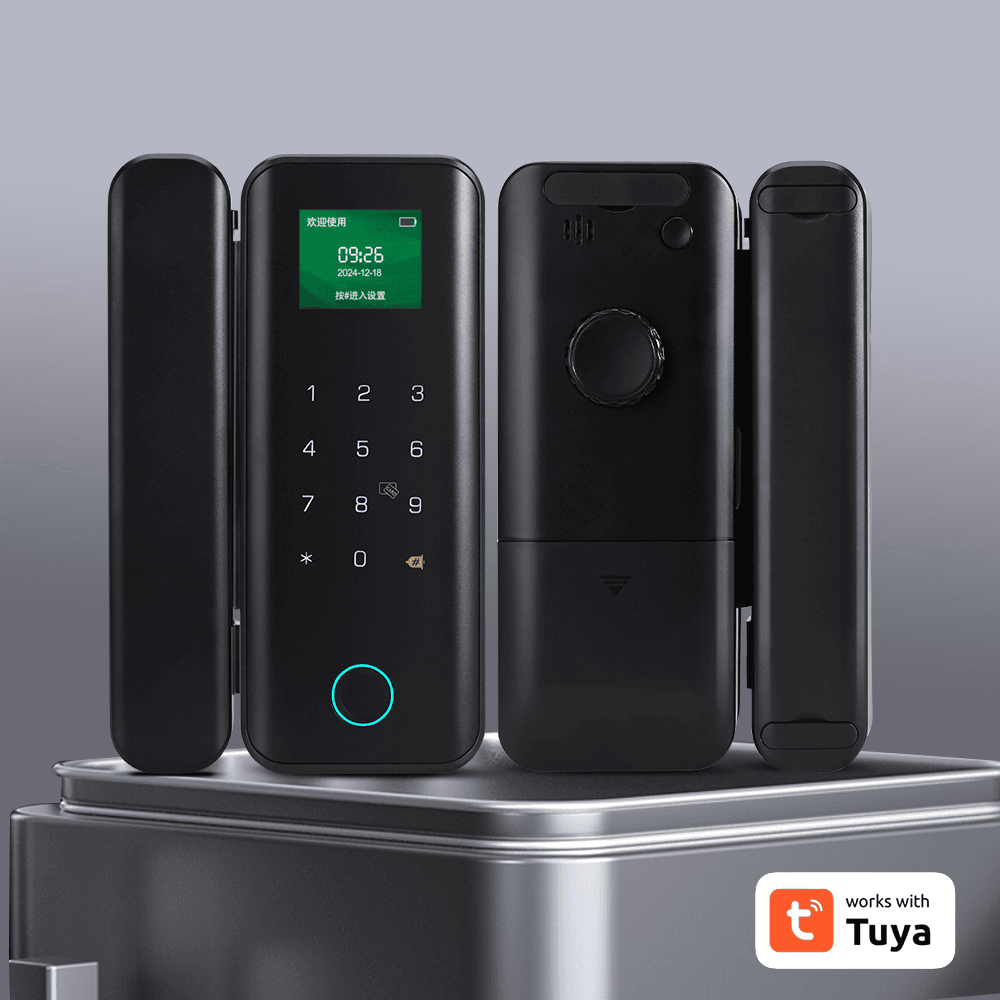

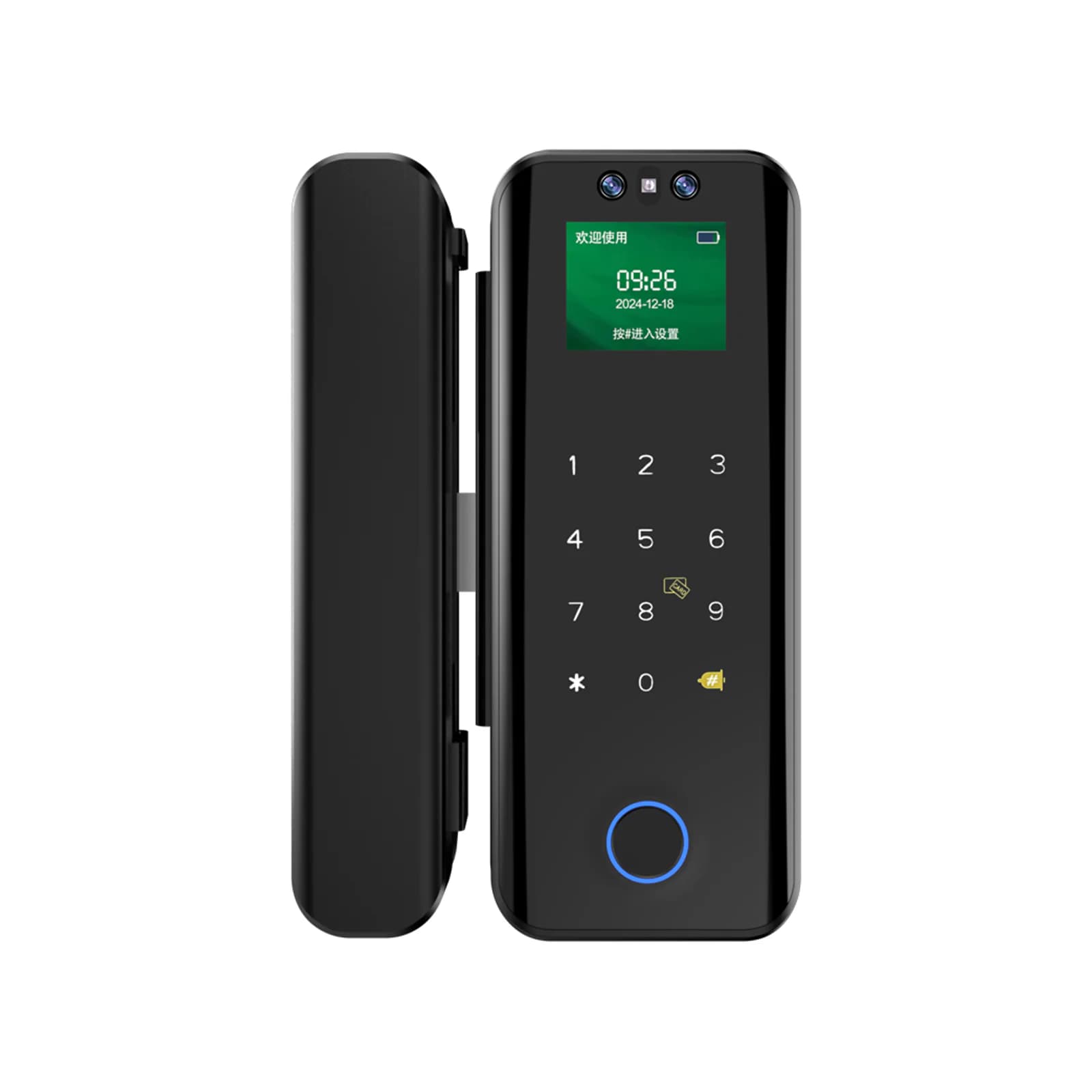

YN-DL-N022-F No-Drilling Smart Door Lock For Glass, Wood And Aluminium Doors
YN-DL-N022-F is a compact smart door lock for glass, framed aluminium, wooden, and sliding doors, with fingerprint, password, magnetic card, mobile phone NFC, lithium battery power, and optional Face ID/Tuya functions.
- Door fit
- 8-12mm for glass door; 30-60mm for wood door
- Cooperation
- OEM/ODM support
Buyer Review Summary
- Access
- Fingerprint, password, magnetic card, mobile phone NFC; optional Face ID, mechanical key, wireless attendance, remote control, Tuya app control
- Communication
- TUYA WBR3 optional; Tuya app control optional
- Power
- 2500mAh lithium battery; 5V 1A emergency power supply
- Construction
- Plastic body in black; other colors can be customized.
- 500 pcs
- Standard packaging MOQ
- 1,000 pcs
- OEM logo + color box
Product Detail
Features
Review the confirmed access methods, hardware direction, software options and buyer-facing value points for this model.
Supports both left and right door opening
Drill-free installation with no drilling required.
Fingerprint recognition speed: ≤ 300 ms.
Supports fingerprint, password, magnetic card, and mobile phone NFC unlocking.
2500mAh lithium battery
Product Detail
Applications
Match the model to residential, hotel, apartment, rental, office or smart-home use cases before quotation.
Glass doors
Framed aluminium alloy doors
Wooden doors
Sliding doors
Apartment and residential retrofit projects
Technical buyer information
Specifications
Key specifications are grouped for quick engineering, purchasing and quotation review.
Recognition & Access Performance
3
| Unlock Methods | Fingerprint, password, magnetic card, mobile phone NFC; optional Face ID, mechanical key, wireless attendance, remote control, Tuya app control |
|---|---|
| Fingerprint capacity | 100 |
| PIN + magnetic card capacity | 1000 sets total |
Lock Body & Hardware
2
| Material / Finish | Plastic body in black; other colors can be customized. |
|---|---|
| Material | Plastic |
Power & Battery Life
1
| Power Supply | 2500mAh lithium battery; 5V 1A emergency power supply |
|---|
Communication & Software
1
| Communication | TUYA WBR3 optional; Tuya app control optional |
|---|
Environment & Protection
1
| Operating temperature | -20C to 60C |
|---|
Installation & Compatibility
2
| Dimension | 7.5*2*18.8cm |
|---|---|
| Suitable door thickness | 8-12mm for glass door; 30-60mm for wood door |
Other Specifications
4
| Door opening mode | Left and right interchangeable |
|---|---|
| Chip | STM32G070RB |
| Display | 0.96 inch, optional |
| Remote control | Optional |
Product Detail
FAQ
Common buyer checks before model selection, sample review and OEM/ODM quotation.
Does YN-DL-N022-F require drilling?
The approved N022-F configuration is designed for completely drill-free installation and does not require drilling.
Which door types does it support?
The lock is suitable for glass doors, framed aluminium-alloy doors, wooden doors, and sliding doors, subject to the compatible installation structure.
Which functions are optional?
Optional configurations include Face ID, Tuya app control, Wi-Fi, remote control, attendance functionality, mechanical key, and a 0.96-inch display. Availability depends on the selected product configuration.
