Integrated camera with indoor visual display
Product detail

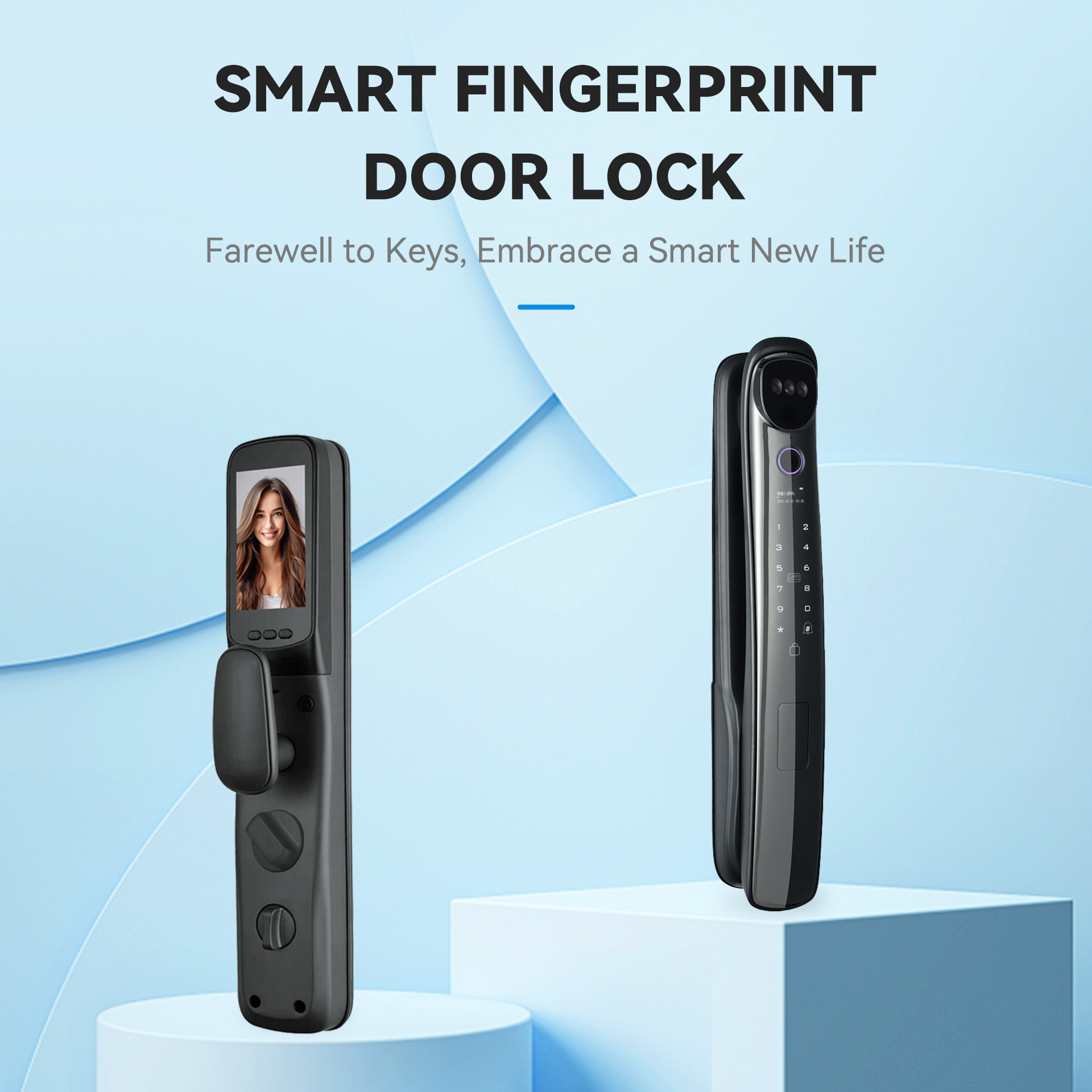

YN-DL-H003-P Camera Smart Door Lock
YN-DL-H003-P is a zinc-alloy camera smart door lock with a 4-inch indoor display, Wi-Fi connectivity, rechargeable 4,200 mAh lithium power and Type-C emergency power for residential, apartment and light-commercial entrance doors.
- Door fit
- 40–90 mm
- Cooperation
- OEM/ODM support
Buyer Review Summary
- Access
- Variant-dependent; subject to customer-approved requirements
- Communication
- Wi-Fi 6 (802.11 b/g/n/ax)
- Power
- Rechargeable 4,200 mAh lithium battery; Type-C emergency power
- Construction
- Zinc alloy, black; other colors subject to confirmation
- 500 pcs
- Standard packaging MOQ
- 1,000 pcs
- OEM logo + color box
Product Detail
Features
Review the confirmed access methods, hardware direction, software options and buyer-facing value points for this model.
Wi-Fi 6 connectivity with WPA/WPA2/WPA3 support
Rechargeable 4,200 mAh lithium battery
Type-C emergency power input
Zinc-alloy construction for entrance-door projects
Product Detail
Applications
Match the model to residential, hotel, apartment, rental, office or smart-home use cases before quotation.
Residential entrance doors
Apartment entrance doors
Light-commercial entrance doors

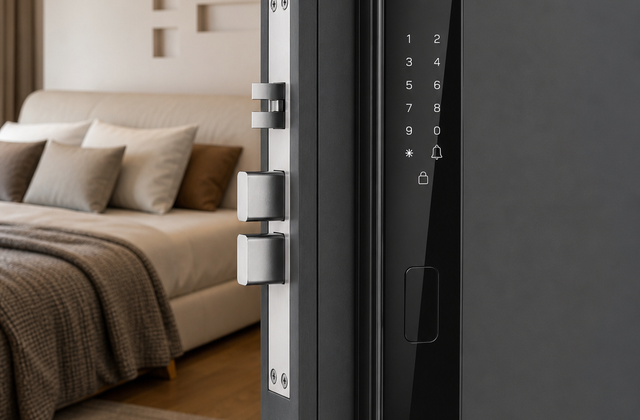

Application images
Technical buyer information
Specifications
Key specifications are grouped for quick engineering, purchasing and quotation review.
Recognition & Access Performance
2
| Unlock Methods | Variant-dependent; subject to customer-approved requirements |
|---|---|
| User Capacity | 300 |
Lock Body & Hardware
2
| Material / Finish | Zinc alloy, black; other colors subject to confirmation |
|---|---|
| Material | Zinc alloy |
Power & Battery Life
6
| Power Supply | Rechargeable 4,200 mAh lithium battery; Type-C emergency power |
|---|---|
| Typical Battery Life | 6 months |
| Static Current | <80 μA |
| Working Current | <380 mA |
| Power Source | Rechargeable 4,200 mAh lithium battery |
| Emergency Power | Type-C |
Communication & Software
2
| Communication | Wi-Fi 6 (802.11 b/g/n/ax) |
|---|---|
| Wi-Fi | 802.11 b/g/n/ax; WPA/WPA2/WPA3 |
Environment & Protection
1
| Operating Temperature | -10°C to 55°C |
|---|
Installation & Compatibility
3
| Front Panel Dimensions | 16.90 × 3.15 in |
|---|---|
| Rear Panel Dimensions | 16.54 × 2.76 in |
| Applicable Door Thickness | 40–90 mm |
Other Specifications
4
| Datasheet Model | YN-DL-H003-P |
|---|---|
| Color | Black; other colors subject to confirmation |
| Camera | Maximum 1280 × 800 |
| Indoor Display | 4 inches |
Product Detail
Downloads
Request datasheets, installation guides, operation manuals, video files and approved buyer resources for the selected model.
Product Detail
FAQ
Common buyer checks before model selection, sample review and OEM/ODM quotation.
What door thickness is specified for YN-DL-H003-P?
The currently verified configuration is specified for doors 40–90 mm thick. Confirm the door construction and mortise compatibility for the project before quotation.
What visual-door capability does H003-P provide?
The verified configuration includes an integrated camera and a 4-inch indoor display for visitor verification at the door.
Does H003-P support Wi-Fi?
The current specification lists 802.11 b/g/n/ax Wi-Fi with WPA/WPA2/WPA3 network encryption. Confirm the approved mobile-app platform for the selected project configuration.
How is H003-P powered?
The current specification lists a rechargeable 4,200 mAh lithium battery and a Type-C emergency power input.
Which unlock methods are available?
Unlock methods depend on the selected product configuration. Do not treat a biometric or remote-access method as included unless it is confirmed for the ordered variant.
Which door types should be confirmed before ordering?
The current information refers to anti-theft and wooden doors. Confirm door construction, handing and mortise compatibility before production.
Can H003-P be supplied for OEM or ODM projects?
OEM/ODM feasibility depends on the approved configuration, requested customization and project volume. Confirm scope with YOUNUO before quotation.
How can buyers get MOQ, warranty, certificates and the datasheet information?
MOQ and warranty follow the Company Commercial Policy or an approved product exception. Certificates and a controlled datasheet version are available on request.
Related paths
Related Products
Continue from this model to product lines, OEM/ODM services, factory proof, buyer FAQ and inquiry.
YN-ID-N008 Anti-Tamper Fingerprint Smart Door Lock
YN-ID-N008 is an anti-tamper fingerprint smart door lock with Tuya app remote unlock and remote control, developed for apartment projects and OEM/ODM customization.
YN-DL-H002-H Video Intercom Biometric Smart Door Lock
YN-DL-H002-H combines remote camera viewing and two-way video intercom with face, palm and fingerprint recognition. Password, Mifare/NFC card and mechanical-key access support residential and project configurations.

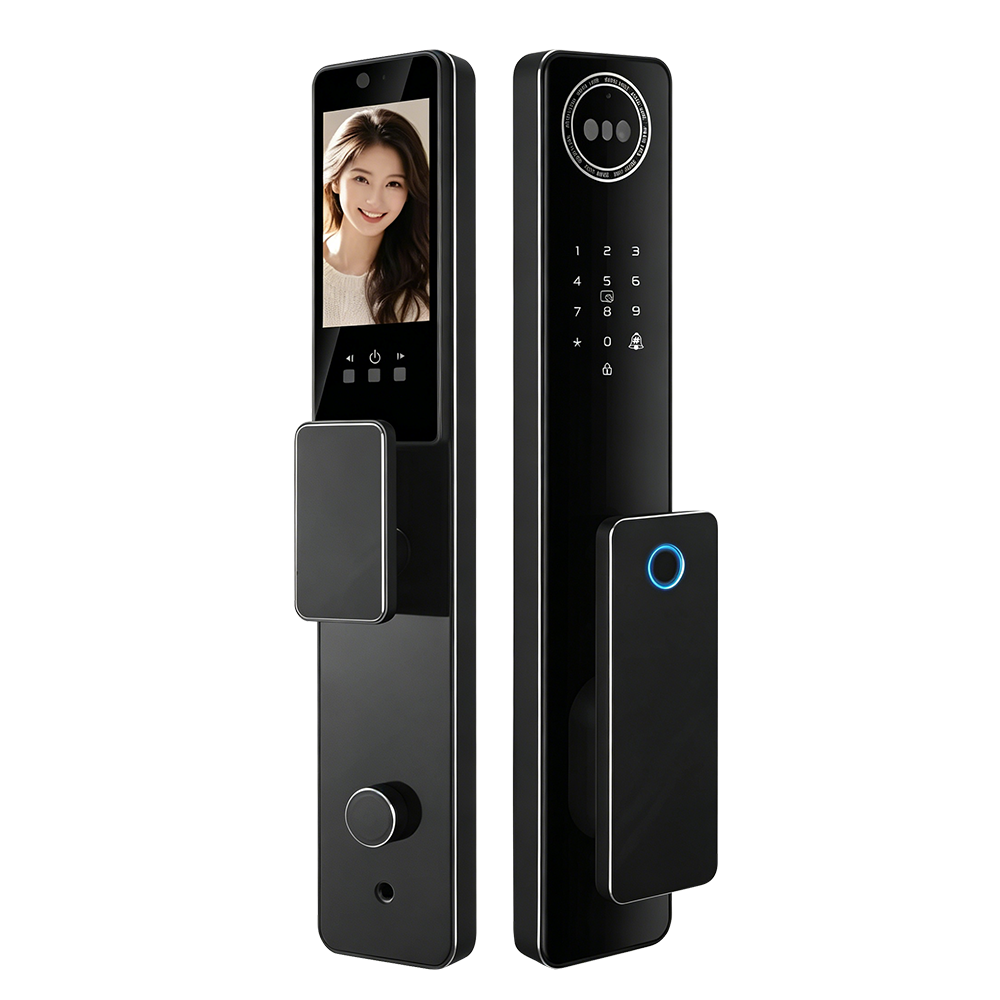

YN-DL-H008 Face and Palm Smart Door Lock
