Tuya smart handle door lock
Product detail

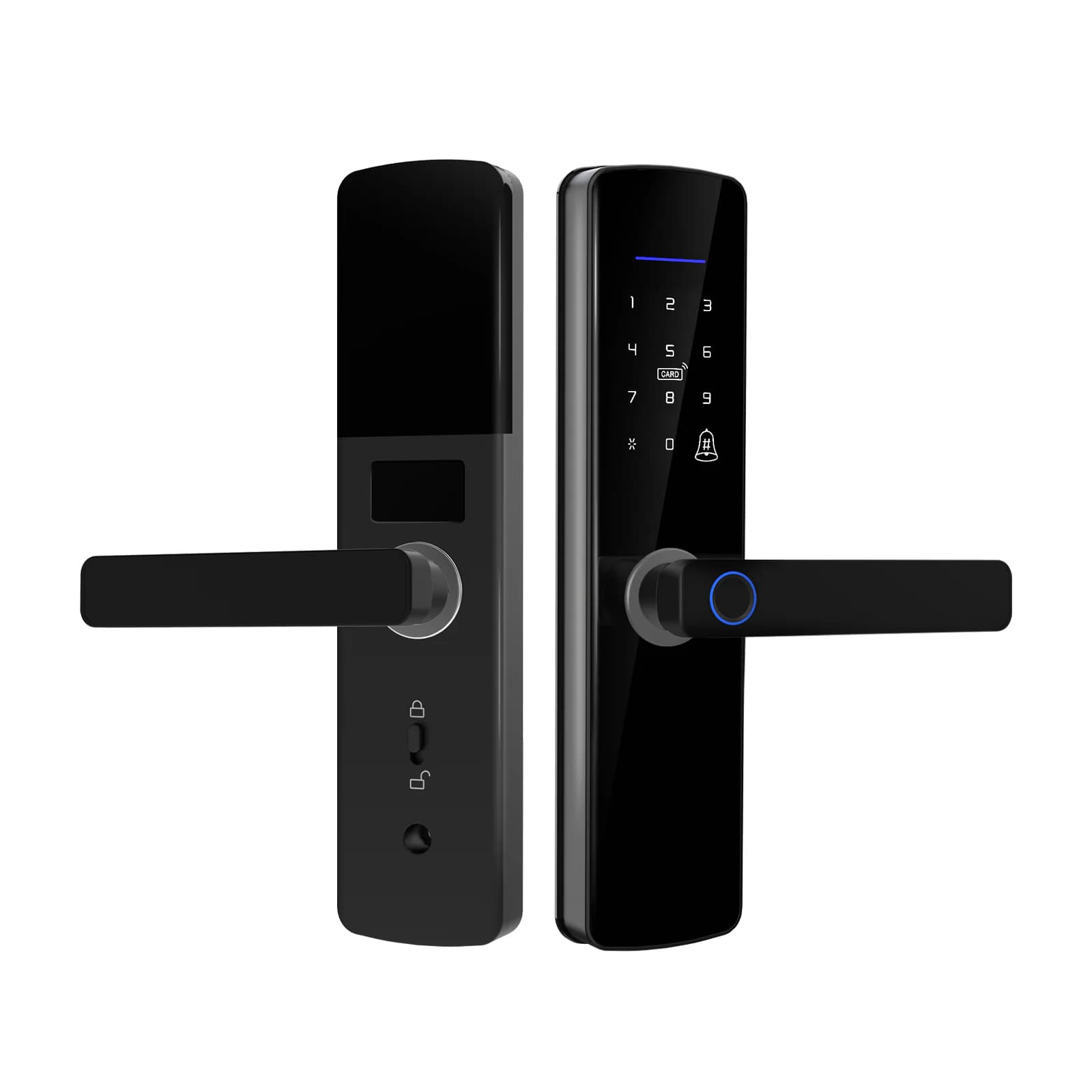

YN-ID-N012 Tuya Smart Handle Door Lock
YN-ID-N012 is a semi-automatic smart handle lock for residential and apartment projects, with fingerprint, PIN, RFID card and mechanical-key access plus selectable Tuya or TTLock connectivity.
- Door fit
- 38mm to 50mm (customizable for thicker doors)
- Protection
- IP54 dust and water resistant
- Cooperation
- OEM/ODM support
Buyer Review Summary
- Access
- Fingerprint, PIN code, RFID card, mechanical key, and app access based on the selected platform
- Communication
- Tuya WiFi (WBR3), Tuya Zigbee, or TTLock Bluetooth; Matter by customization only
- Power
- 4 × AA alkaline batteries only; 7.4V lithium battery is not supported
- Construction
- Aviation aluminum alloy panel with anodized finish
- 2 years
- Complete lock warranty
- 3 years
- Core component warranty
- 500 pcs
- Standard packaging MOQ
- 1,000 pcs
- OEM logo + color box
Product Detail
Features
Review the confirmed access methods, hardware direction, software options and buyer-facing value points for this model.
Fingerprint, password, card, mechanical key, and Tuya app access
Recognition speed listed as <300ms
4 x AA battery compartment shown
Anti-tamper alarm listed
Emergency USB port shown
Product Detail
Applications
Match the model to residential, hotel, apartment, rental, office or smart-home use cases before quotation.
Residential doors
Apartment doors
Office doors
Smart home product channels
Technical buyer information
Specifications
Key specifications are grouped for quick engineering, purchasing and quotation review.
Recognition & Access Performance
13
| Unlock Methods | Fingerprint, PIN code, RFID card, mechanical key, and app access based on the selected platform |
|---|---|
| Fingerprint Sensor Type | Semiconductor capacitive fingerprint sensor |
| Fingerprint Capacity | 100 fingerprints |
| Fingerprint Recognition Speed | ≤ 300ms |
| False Acceptance Rate (FAR) | ≤ 0.001% |
| False Rejection Rate (FRR) | ≤ 1% |
| Password Capacity | 100 groups |
| Virtual Password Support | Yes, up to 16-digit random dummy password |
| RFID Card Type | M1 IC card (13.56MHz) |
| Card Capacity | 100 cards |
| Mechanical Keys | 2 pieces |
| App Remote Unlocking | Supported via Tuya Smart app |
| Unlock Operation | Manual Handle Press (Semi-automatic) |
Lock Body & Hardware
9
| Material / Finish | Aviation aluminum alloy panel with anodized finish |
|---|---|
| Lock Body Type | Standard 6068 mortise lock body |
| Lock Tongue Configuration | 1 latch bolt + 3 dead bolts + 1 anti-saw bolt |
| Lock Body Material | 304 stainless steel |
| Panel Material | Aviation aluminum alloy |
| Panel Finish | Anodized surface treatment |
| Handle Material | Zinc alloy |
| Motor Type | DC gear motor |
| Cylinder Security Grade | Class C anti-drill cylinder |
Power & Battery Life
8
| Power Supply | 4 × AA alkaline batteries only; 7.4V lithium battery is not supported |
|---|---|
| Typical Battery Life | 12 months under normal use |
| Standby Current | ≤ 30μA |
| Working Current | ≤ 200mA |
| Peak Current | ≤ 800mA |
| Low Battery Alarm Threshold | 4.8V |
| Emergency Power Interface | Micro USB / Type-C port (5V power bank) |
| Low Battery Reminder | Audible + app push reminder |
Communication & Software
10
| Communication | Tuya WiFi (WBR3), Tuya Zigbee, or TTLock Bluetooth; Matter by customization only |
|---|---|
| Communication Protocol | Tuya WiFi (WBR3), Tuya Zigbee, or TTLock Bluetooth |
| Matter Protocol | Available only as a customized development option |
| Supported Smart Platform | Tuya Smart / Smart Life or TTLock, depending on the selected PCBA |
| OTA Firmware Upgrade | Supported |
| Real-time Status Push | Supported (lock/unlock and alarm events) |
| Operation Log Recording | Supported, 1000+ entries stored |
| Multi-user Permission Management | Supported |
| Auto-lock Function | Optional, adjustable timing |
| Passage Mode | Supported |
Safety & Alarms
5
| Anti-tamper Alarm | Triggered when front panel is pried |
|---|---|
| Wrong Attempt Lockout | Lock for 90s after 5 consecutive wrong attempts |
| Lock Picking Alarm | Supported |
| Forced Entry Duress Alarm | Supported (silent alarm via app) |
| Door Left Open Reminder | Supported |
Environment & Protection
4
| Ingress Protection Rating | IP54 dust and water resistant |
|---|---|
| Working Temperature | -20℃ to 60℃ |
| Working Humidity | 10% to 90% RH (non-condensing) |
| Storage Temperature | -30℃ to 70℃ |
Installation & Compatibility
6
| Panel Dimensions | 280mm (H) × 65mm (W) |
|---|---|
| Suitable Door Thickness | 38mm to 50mm (customizable for thicker doors) |
| Applicable Door Types | Wooden doors, steel security doors, apartment doors |
| Mounting Hole Spacing | Standard 60mm center distance |
| Installation Orientation | Reversible, fits left-hand / right-hand doors |
| Backset | 60mm / 70mm optional |
Certifications & Compliance
3
| Product Certifications | CE, RoHS, FCC |
|---|---|
| Quality Management System | ISO 9001:2015 certified factory |
| Export Compliance | REACH compliant for EU market |
Product Detail
FAQ
Common buyer checks before model selection, sample review and OEM/ODM quotation.
What unlocking methods does YN-ID-N012 support?
YN-ID-N012 supports fingerprint, password, RFID card, mechanical key, and app access according to the selected wireless configuration.
What is the fingerprint recognition speed?
The confirmed fingerprint recognition speed is ≤ 300ms.
Which wireless protocols are available for YN-ID-N012?
YN-ID-N012 can be configured with Tuya WiFi using the WBR3 module, Tuya Zigbee, or TTLock Bluetooth. Matter is available only as a customized development option.
Does YN-ID-N012 support a 7.4V lithium battery?
No. YN-ID-N012 supports only 4 AA alkaline batteries and does not support a 7.4V lithium battery.
